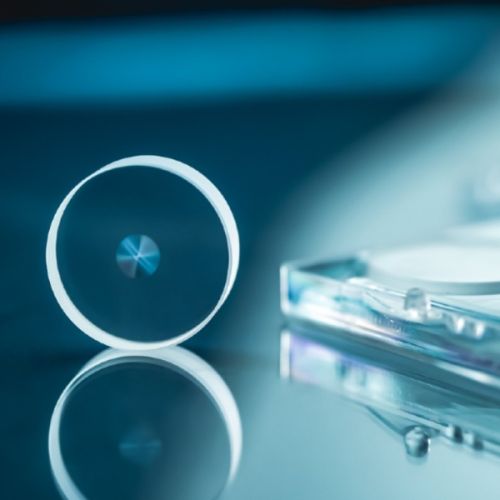

We offer a new solution to solve the depolarization loss issue – a depolarization compensator.
It is a spatially variable wave plate (SVWP), fabricated knowing the level of depolarization, its origin, and amplified laser beam parameters.
This method is more beneficial than others, such as an intracavity quarter-wave plate, intracavity Faraday rotator, classical depolarization compensation layout with two identically pumped and relay-imaged gain media, and different crystal cut directions.
Due to the unique properties of precisely point-by-point inscribed nano-gratings, our depolarization compensator is flexible and versatile, and it can be widely adjusted according to customer needs.
ADVANTAGES VS. ALTERNATIVES
No absorption
Very low scattering
Custom and continuous point by point patterns
Maximum power extraction possibility without additional beam quality degradation
Flexibility to compensate different amounts of depolarization by stacking more than one element
Saves space, is easy to handle
Significantly lower price
WOP solution – depolarization compensator
Thermal effects in a high-power laser’s gain medium create predictable axially symmetric temperature gradients. Temperature gradients generate mechanical stresses in pumped crystal, which lead to induced birefringence.
Generated optical anisotropy causes significant power losses if a laser system contains polarization-sensitive elements (eg Brewster plates, Faraday rotators).
Workshop of Photonics | WOP, in a joint effort with Ekspla Ltd., based on Ekspla Ltd invention EP3712664 (A1), developed and verified a solution to solve the depolarization loss issue – an optical element that compensates distortion of original polarization in the gain medium.
A subpicosecond laser system was investigated, featuring fiber CPA-based seed laser FemtoLux 30 (Ekspla) and a double-pass end-pumped Yb:YAG crystal power amplifier.
The key novelty of the system was the application of depolarization compensation using a specially designed spatially variable wave plate or SVWP, which allowed the extraction of nearly maximum power from such an amplifier without additional beam quality degradation.
To the best of our knowledge, this method has been applied for the first time.

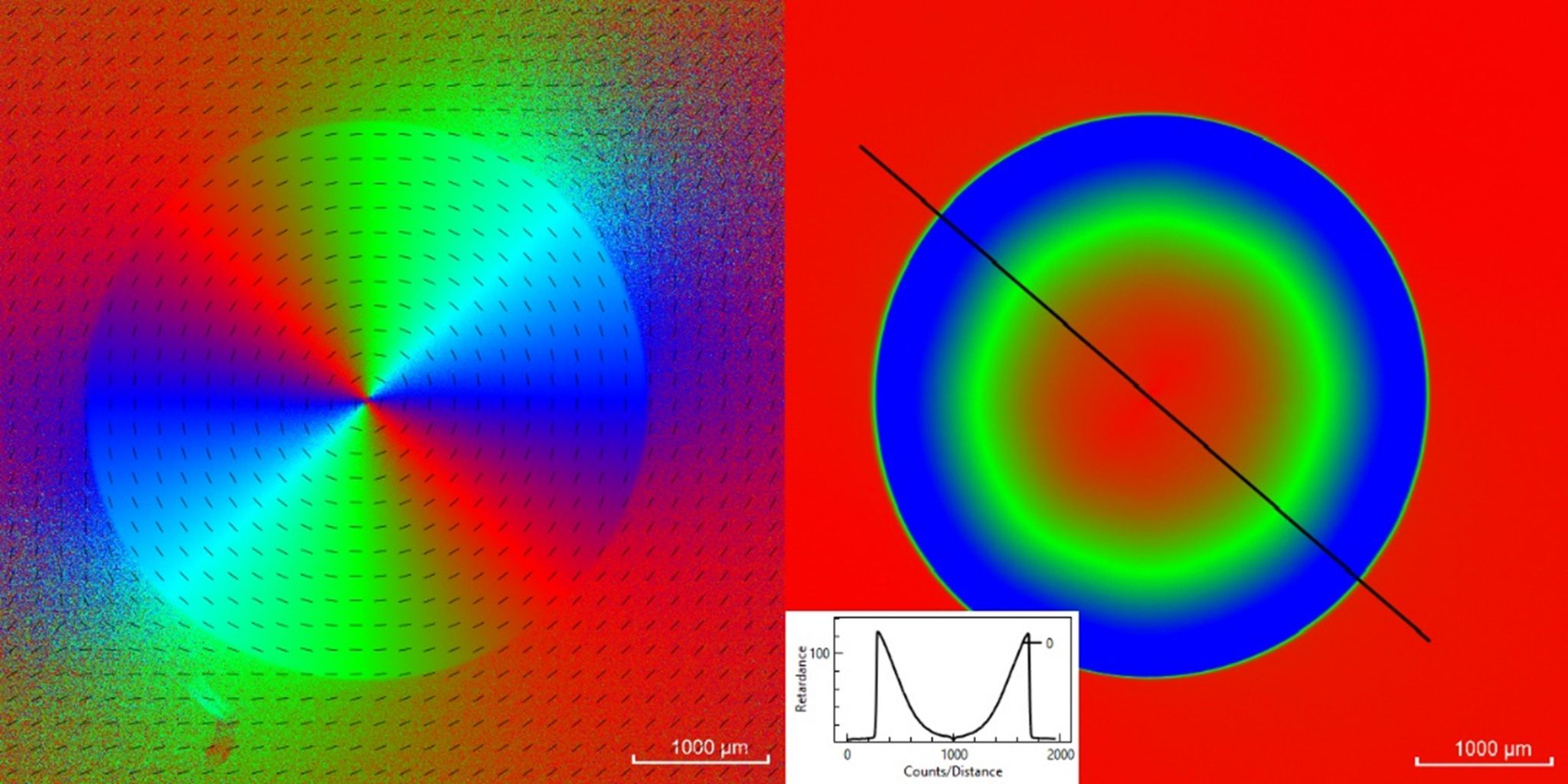

Depolarization compensator. Left: Two-dimensional distribution map of the orientation of fast and slow axes. Right: Retardance profile.
