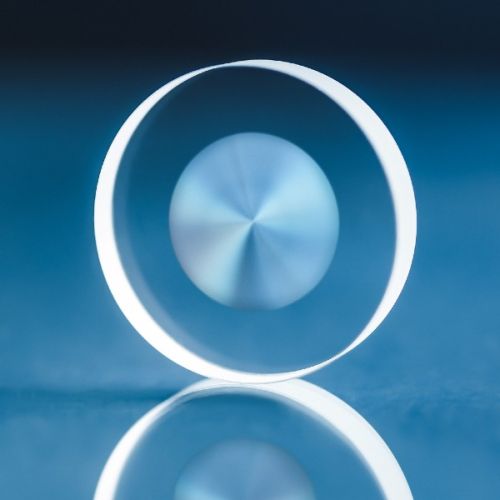

Circular Grating | Flat Axicon

Transforms Gaussian beam into a Bessel-Gauss beam

Circular grating, a.k.a flat axicon, is a space-variant retarder that transforms Gaussian beam into a Bessel-Gauss beam.

Main features

  • Positive and negative Bessel-Gauss zones – 3 in 1 usage possibilities.

  • Suitable for high LIDT applications and high-power lasers.

  • Flat optics – saves space, easy to handle.

  • Reliable and resistant surface – the structure is inside the bulk.

Technical information
Application example
Shipping
Grouped product items
SKU Wavelength Range, nmClear Aperture | CA, mmTransmission, %Apex AngleSubstrate MaterialDiameter, mmThickness, mmAR Coating Price
CG-343-02
343 ±20
2
>85%
UVFS (Corning 7980)
25.4
3
NO
€1,200.00
CG-343-02-AR
343 ±20
2
>90%
UVFS (Corning 7980)
25.4
3
YES
€1,650.00
CG-343-04
343 ±20
4
>85%
UVFS (Corning 7980)
25.4
3
NO
€1,400.00
CG-343-04-AR
343 ±20
4
>90%
UVFS (Corning 7980)
25.4
3
YES
€1,850.00
CG-343-06
343 ±20
6
>85%
UVFS (Corning 7980)
25.4
3
NO
€1,850.00
CG-343-06-AR
343 ±20
6
>90%
UVFS (Corning 7980)
25.4
3
YES
€2,300.00
CG-343-08
343 ±20
8
>85%
UVFS (Corning 7980)
25.4
3
NO
€2,100.00
CG-343-08-AR
343 ±20
8
>90%
UVFS (Corning 7980)
25.4
3
YES
€2,550.00
CG-343-10
343 ±20
10
>85%
UVFS (Corning 7980)
25.4
3
NO
€2,800.00
CG-343-10-AR
343 ±20
10
>90%
UVFS (Corning 7980)
25.4
3
YES
€3,250.00
CG-343-15
343 ±20
15
>85%
UVFS (Corning 7980)
25.4
3
NO
€4,850.00
CG-343-15-AR
343 ±20
15
>90%
UVFS (Corning 7980)
25.4
3
YES
€5,300.00
CG-515-02
515 ±20
2
>92%
UVFS (Corning 7980)
25.4
3
NO
€1,200.00
CG-515-02-AR
515 ±20
2
>97%
UVFS (Corning 7980)
25.4
3
YES
€1,650.00
CG-515-04
515 ±20
4
>92%
UVFS (Corning 7980)
25.4
3
NO
€1,400.00
CG-515-04-AR
515 ±20
4
>97%
UVFS (Corning 7980)
25.4
3
YES
€1,850.00
CG-515-06
515 ±20
6
>92%
UVFS (Corning 7980)
25.4
3
NO
€1,850.00
CG-515-06-AR
515 ±20
6
>97%
UVFS (Corning 7980)
25.4
3
YES
€2,300.00
CG-515-08
515 ±20
8
>92%
UVFS (Corning 7980)
25.4
3
NO
€2,100.00
CG-515-08-AR
515 ±20
8
>97%
UVFS (Corning 7980)
25.4
3
YES
€2,550.00
CG-515-10
515 ±20
10
>92%
UVFS (Corning 7980)
25.4
3
NO
€2,800.00
CG-515-10-AR
515 ±20
10
>97%
UVFS (Corning 7980)
25.4
3
YES
€3,250.00
CG-515-15
515 ±20
15
>92%
UVFS (Corning 7980)
25.4
3
NO
€4,850.00
CG-515-15-AR
515 ±20
15
>97%
UVFS (Corning 7980)
25.4
3
YES
€5,300.00
CG-1030-02
1030 ±35
2
>94%
UVFS (Corning 7980)
25.4
3
NO
€1,300.00
CG-1030-02-AR
1030 ±35
2
>99%
UVFS (Corning 7980)
25.4
3
YES
€1,750.00
CG-1030-04
1030 ±35
4
>94%
UVFS (Corning 7980)
25.4
3
NO
€1,750.00
CG-1030-04-AR
1030 ±35
4
>99%
UVFS (Corning 7980)
25.4
3
YES
€2,200.00
CG-1030-06
1030 ±35
6
>94%
UVFS (Corning 7980)
25.4
3
NO
€2,550.00
CG-1030-06-AR
1030 ±35
6
>99%
UVFS (Corning 7980)
25.4
3
YES
€3,000.00
CG-1030-08
1030 ±35
8
>94%
UVFS (Corning 7980)
25.4
3
NO
€3,250.00
CG-1030-08-AR
1030 ±35
8
>99%
UVFS (Corning 7980)
25.4
3
YES
€3,700.00
CG-1030-10
1030 ±35
10
>94%
UVFS (Corning 7980)
25.4
3
NO
€4,850.00
CG-1030-10-AR
1030 ±35
10
>99%
UVFS (Corning 7980)
25.4
3
YES
€5,300.00
CG-1030-15
1030 ±35
15
>94%
UVFS (Corning 7980)
25.4
3
NO
€7,800.00
CG-1030-15-AR
1030 ±35
15
>99%
UVFS (Corning 7980)
25.4
3
YES
€8,250.00
CG-1064-02
1064 ±35
2
>94%
UVFS (Corning 7980)
25.4
3
NO
€1,400.00
CG-1064-02-AR
1064 ±35
2
>99%
UVFS (Corning 7980)
25.4
3
YES
€1,850.00
CG-1064-04
1064 ±35
4
>94%
UVFS (Corning 7980)
25.4
3
NO
€1,850.00
CG-1064-04-AR
1064 ±35
4
>99%
UVFS (Corning 7980)
25.4
3
YES
€2,300.00
CG-1064-06
1064 ±35
6
>94%
UVFS (Corning 7980)
25.4
3
NO
€3,150.00
CG-1064-06-AR
1064 ±35
6
>99%
UVFS (Corning 7980)
25.4
3
YES
€3,600.00
CG-1064-08
1064 ±35
8
>94%
UVFS (Corning 7980)
25.4
3
NO
€5,100.00
CG-1064-08-AR
1064 ±35
8
>99%
UVFS (Corning 7980)
25.4
3
YES
€5,550.00
CG-1064-10
1064 ±35
10
>94%
UVFS (Corning 7980)
25.4
3
NO
€9,550.00
CG-1064-10-AR
1064 ±35
10
>99%
UVFS (Corning 7980)
25.4
3
YES
€10,000.00
CG-1064-15
1064 ±35
15
>94%
UVFS (Corning 7980)
25.4
3
NO
€11,800.00
CG-1064-15-AR
1064 ±35
15
>99%
UVFS (Corning 7980)
25.4
3
YES
€12,250.00

Circular grating | flat axicon is leading for its high damage threshold, comparing to alternative devices. It has laser irradiation resistance similar to uncoated fused silica substrates.
The structure of the element is unique due to formation birefringent nanograting’s inside a bulk of fused silica glass, sensitive to the incident polarization.

Circular grating can generate both – positive and negative Bessel-Gauss zones, separately with LHCP and RHCP polarizations. Also, positive and negative zones simultaneously with linear polarization. The working regime depends only on incident polarization.

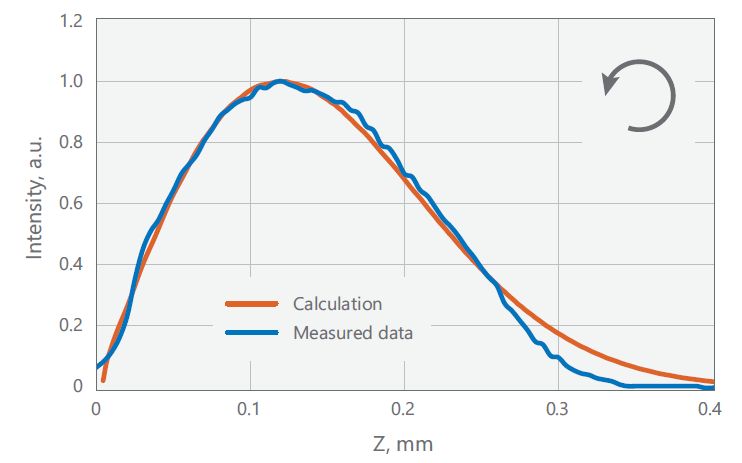

Positive Bessel-Gauss zone

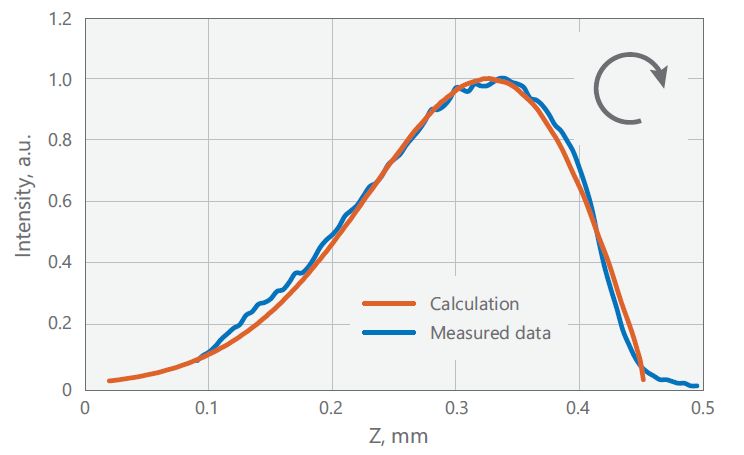

Negative Bessel-Gauss zone

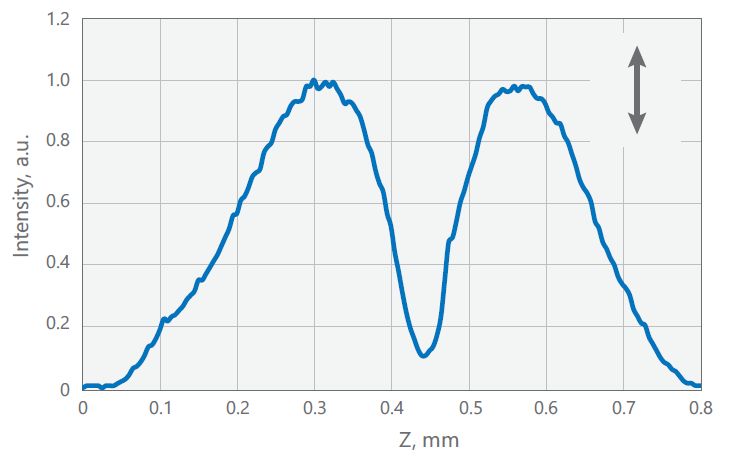

Positive and negative Bessel-Gauss Zone

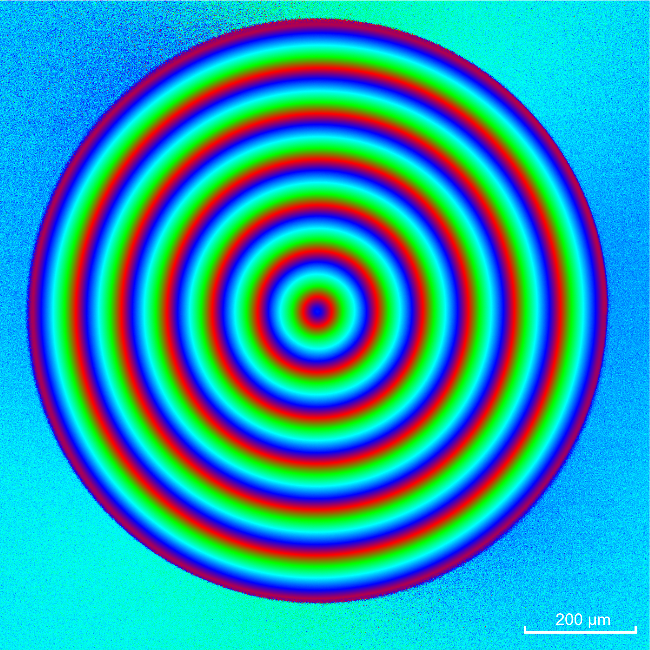

Fast axis distribution across the element

Technical features

  • Material: UVFS, IRFS

  • Wavelength range: 330nm to 2000 nm

  • Min Apex angle: 176-179.9° @1030 nm
  • Diffraction efficiency: up to 95%
  • Element size: up to 15 mm
  • Coating (optional): AR/AR coating
  • Uncertainty of diameter of cone tip – ~20 µm
  • LIDT | High damage threshold: 63 J/cm2 @1064 mn, 10ns; 2 J/cm2 @1030 nm, 212fs
  • Transmission (no AR coating): 85% @343 nm, 92% @515 nm, 94% @1030 n
  • Micromachining
  • Ultra-high aspect ratio micro holes drilling

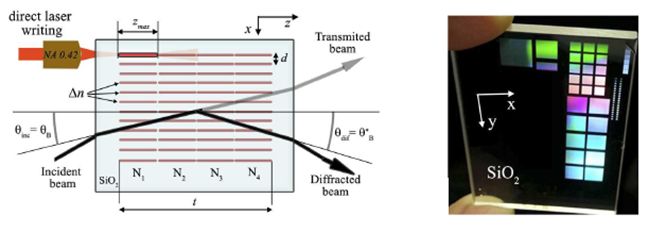

  • High 90% efficiency Bragg gratings

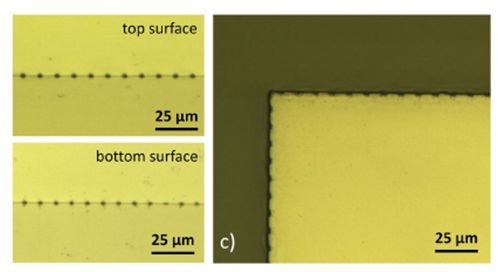

  • Cutting of transparent materials

All items listed on the website are custom-made after we receive your order and payment. The fabrication process typically takes 2 to 4 weeks, depending on the specific item ordered. If you choose the AR coating option, an additional 2 weeks will be added to the delivery timeframe. The final delivery date will be provided in the quotation.

Pricing information and shipping durations will be displayed once you select your address.
